FUSE SELECTION
20A - Recommended for pumps GSS341 / 342 / 340
25A - Recommended for pumps F90000262 / 267 / 274 / 352
30A - Recommended for pumps F90000285 / 295

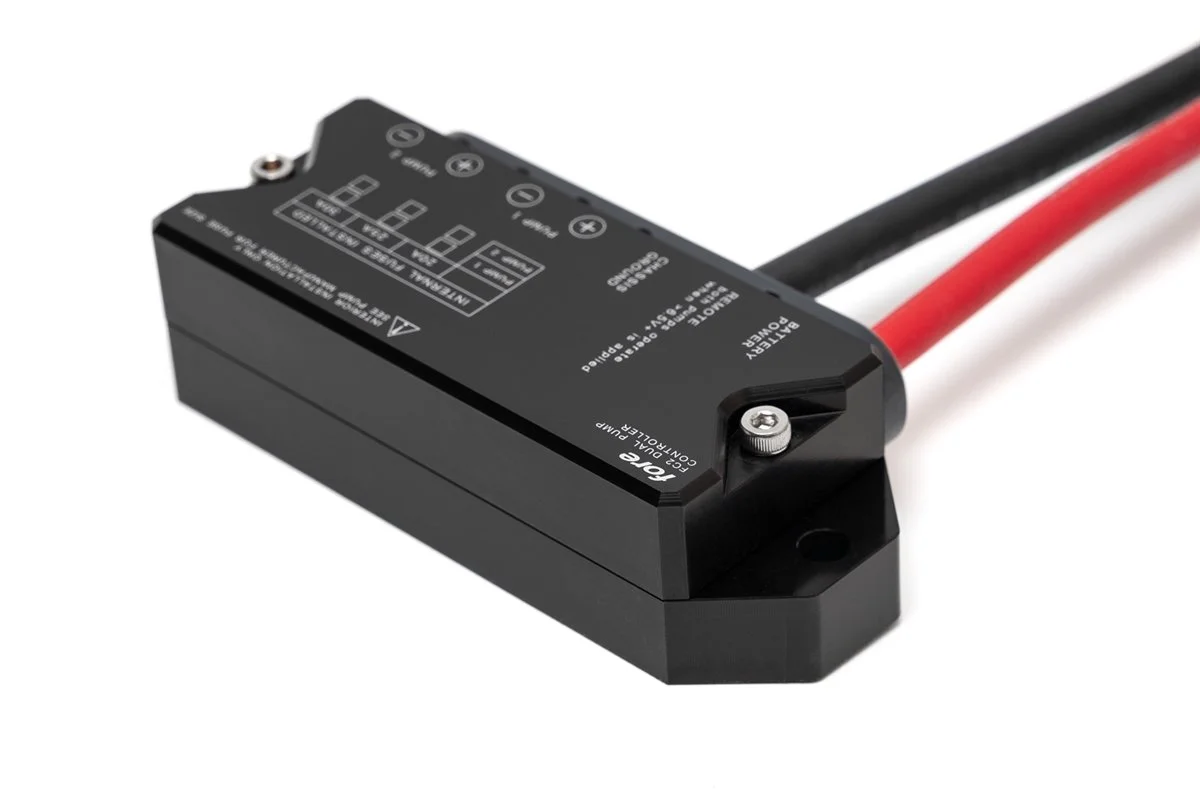

• Electrical solution for dual pump return fuel systems for efficient load handling and power distribution

• Simple trigger system works with basic switched 12V+ on/off (6.5V+ minimum)

• Runs two pumps full time (see FC3 for staging pumps)

• 30 amp x 2 capacity, 99.3% efficient

• Replaceable internal fuses for each pump

• May also be used on other DC motors such as intercooler, water (check current requirements)

• NEW High Current APP® connectors pre-installed on main power/ground wires for maximum connection integrity and reliability

AVAILABLE CONFIGURATIONS

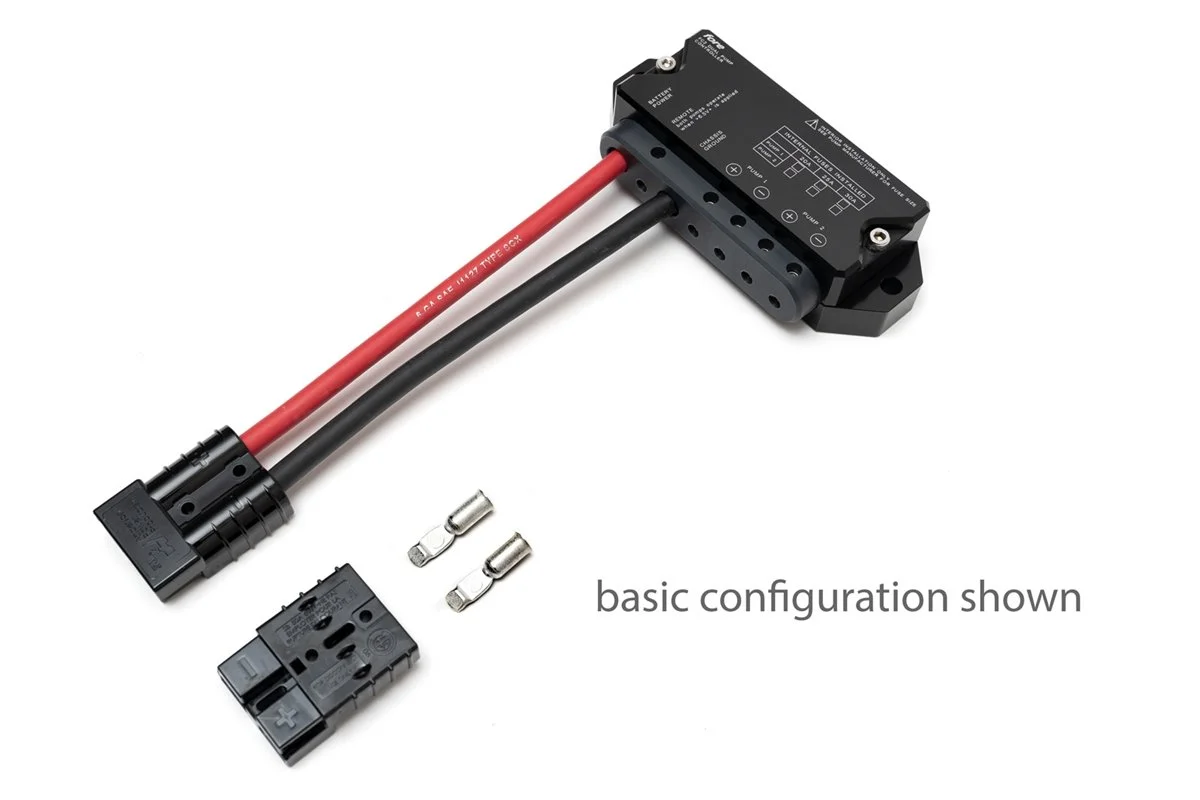

• Basic: comes with unassembled APP® connector for main power and ground

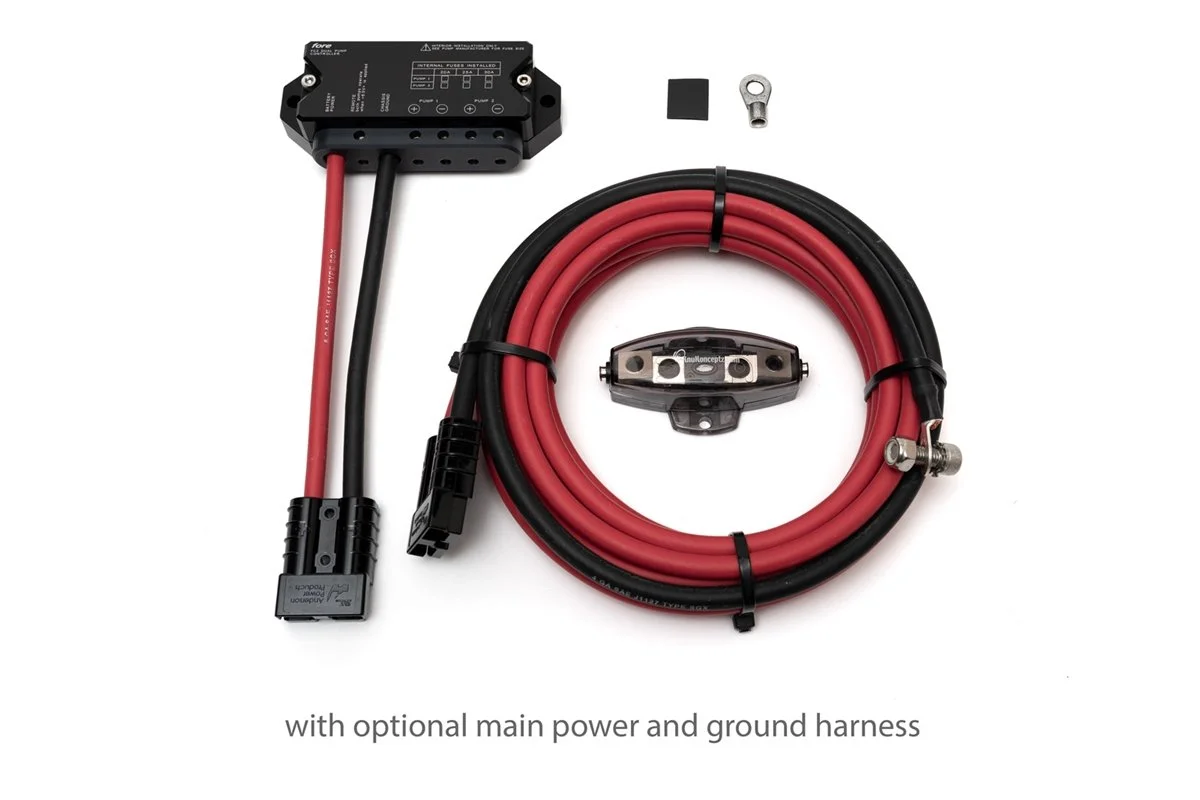

• Add Main Power and Ground Harness: 15' 6 AWG power, 3' 6 AWG ground assembled to APP® power connector with 80A inline fuse.

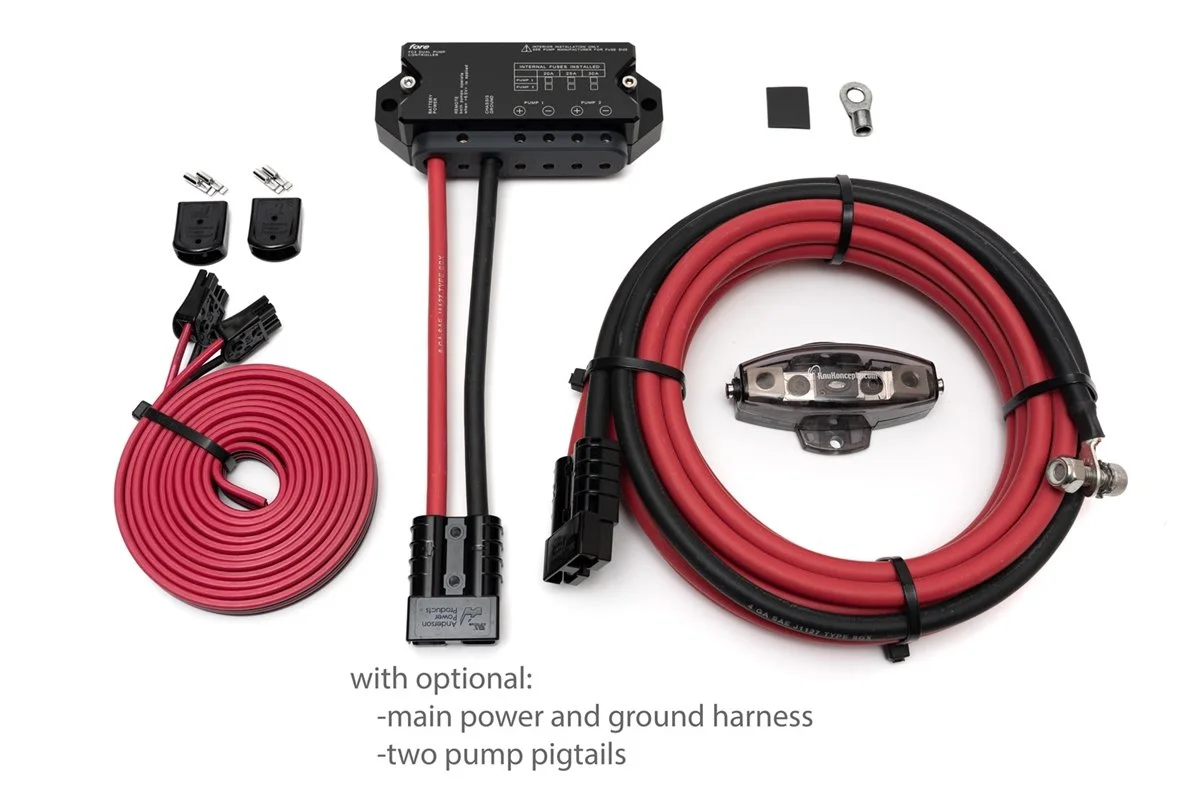

• Add Pump Pigtails: two pairs of 7' 12 AWG pump wires assembled to Delphi pump connectors and unassembled male Delphi connectors.

WARNINGS

• Do not operate with over 16.5V supplied power

• For interior installation only

• Run only one pump per output (two maximum)

ACCESSORIES
Replacement 6 AWG APP® main power connector, unassembled
